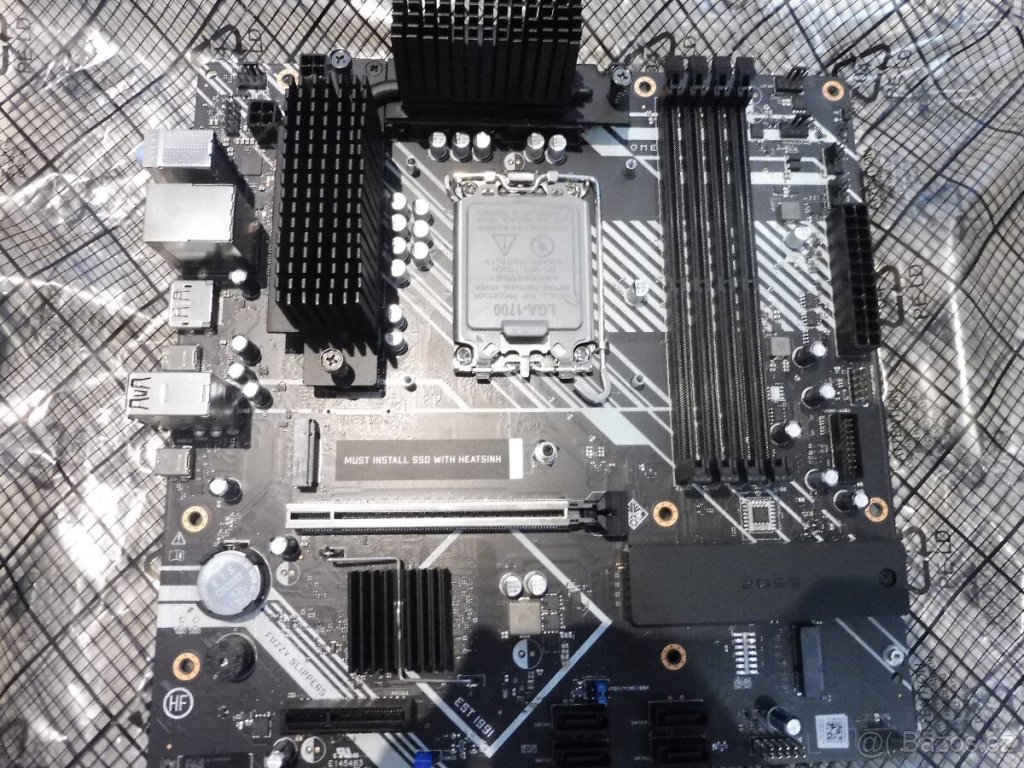

Základní deska HP OMEN 45L ArcticOC, SSID: 8A96, Intel Z790

Základní deska pro HP Omen ArticOC 45L, lze použít samostatně do jiných sestav.
Označení PN: N18812-001, N18812-601, SSID: 8A96, Micro ATX, Chipset Intel Z790, Processor socket: LGA1700
Podporuje: Intel Core i9-14900K/KF,
Intel Core i7-14700K/KF, Intel Core i5-14600K/KF, Intel Core i7-13700K/KF, Intel Core i9-13900K/KF.
DDR4 Dual channel memory architecture
Intel UHD Graphics 770 (Intel Core i9-13900K and i7-13700K only)
Audio Codec: ALC3866-CG
Ethernet LAN: 1000BASE-T, Technology: Realtek RTL8118 ASH-CG
1x PCI Express 5.0 x16 lanes
1x PCI Express 3.0 x4 lanes
1x M.2 socket 1, key A, type 2230 for WLAN
2x M.2 socket 3, key M, type 2280 for SSDs (PCIe Gen 4.0 x4)

Back I/O ports
1x RJ-45 Ethernet port
3x Audio ports (line-in/line-out/microphone)
1x DisplayPort (DP) output
2x USB 2.0 Type-A port
2x USB 3.2 Gen 1.0 Type-A ports (5 Gbps signaling rate)
2x USB 3.2 Gen 2.0 Type-A ports (10 Gbps signaling rate)
1x USB 3.2 Gen 1.0 Type-C port (5 Gbps signaling rate)
1x USB 3.2 Gen 2.0 Type-C port (10 Gbps signaling rate)
